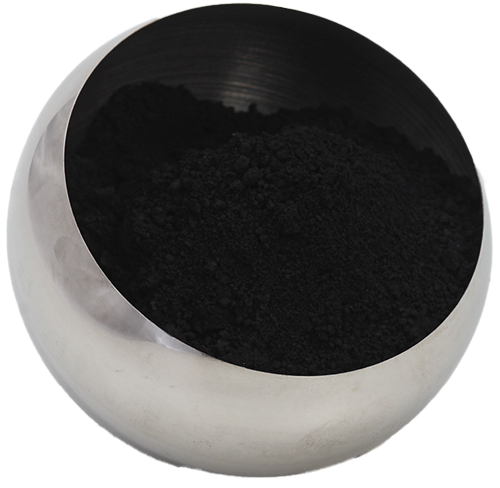

Manganese ferrum black pigment

Manganese Ferrum Black

Cadello manganese ferrum black pigments deliver neutral to slightly warm black tones with excellent thermal and weather resistance, suitable for architectural coatings, concrete, and ceramics.

Chemical Composition: Mn-Fe Chemical Formula: MnFe2O4 Colour Index™: Pigment Black 33 CAS Number: 68186-90-3 Crystal Form: Spinel

Application

Manganese ferrum black is mainly used in facade and roofing tiles, architectural concrete, refractory ceramics, and heavy-duty industrial coatings where colour stability and durability are critical.

Black coloured facade
Black thermal coating
Black concrete
Black tailpipe

Technical Data

Model CDL-MT80
Average Particle Size (μm) 2.5
Thermal Tolerance (°C) 1000°C
Light Fastness (level 1–8) 8
Weather Resistance (Grade 1–5) 5
Oil Absorption (g/100g) 10–25
Density (g/cm³) 4.5–5.3
pH Value 6–9
Acid & Alkali Resistance (Grade 1–5) 5
Full Color
Deluted Color (1:4 TiO₂)
Coating
Plastic
Glass Ink
Concrete
Recommendation Not recommended

Customized Solutions

Cadello offers tailored formulation development, performance optimization, and application testing to provide precise, high-performance pigment solutions across plastics, ceramics, glass, and coatings.

Please contact us for more technical data.
